 产品概述

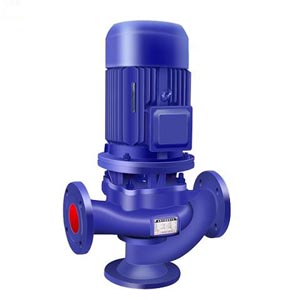

GW管道式无堵塞排污泵为立式单吸单级离心排泵，进出口中心线在同一水平线上，进出口法兰相同，故安装拆卸十分方便，占地面积小，可像阀门一样安装在管路的任何位置上。泵与电机直联同轴，属机电一体化产品，结构紧凑，性能稳定。采用大流道抗堵塞水力部件设计，大大提高污物通过能力，能有效地通过泵口径的5倍纤维物质和直径为泵口径约50%的固体颗粒。设计合理，配套电机合理，效率高，节能效果显著。械密封采用硬质耐磨碳化钨，具有耐用、耐磨等特点，可以使泵安全连续运行8000小时以上。水力性能先进，整机效率高，运转噪音低。在电机风叶端加上防护罩，整机可置于室外工作，无需机房，可节省大量基建费用。在使用扬程范围内使用，保证电机无过载。
结构说明
GW型系列无堵塞单级管道排污泵系进出口在同一水平线上，且规格相同，立式结构，占地面积小，电机与泵同轴，设有安装底盘，便于安装稳固，叶轮采用单（双）流道，具有良好的通过性能。 GW管道式无堵塞排污泵型号意义： 100 GW 100-15-7.5 100 – 泵排出口公称直径 (mm) GW – 管道式排污泵 100 – 额定流量 (m3/h) 15 – 额定扬程 (m) 7.5 – 配用电机额定功率 (Kw) GW管道式无堵塞排污泵性能参数表 型号 | 口径
mm | 流量
m3/h | 扬程
m | 功率
KW | 转速
r/min | 效率
% | 使用扬
程范围 | 25GW8-22-1.1 | 25 | 8 | 22 | 1.1 | 2825 | 38.5 | 10-22 | 32GW12-15-1.1 | 32 | 12 | 15 | 1.1 | 2825 | 40 | 8-15 | 40GW15-15-1.5 | 40 | 15 | 15 | 1.5 | 2840 | 45.1 | 6-15 | 40GW15-30-2.2 | 40 | 15 | 30 | 2.2 | 2840 | 48 | 15-30 | 50GW20-7-0.75 | 50 | 20 | 7 | 0.75 | 1390 | 54 | 3-7 | 50GW10-10-0.75 | 50 | 10 | 10 | 0.75 | 1390 | 56 | 4-10 | 50GW20-15-1.5 | 50 | 20 | 15 | 1.5 | 2840 | 55 | 6-15 | 50GW15-25-2.2 | 50 | 15 | 25 | 2.2 | 2840 | 56 | 10-25 | 50GW18-30-3 | 50 | 18 | 30 | 3 | 2880 | 58 | 15-30 | 50GW25-32-5.5 | 50 | 25 | 32 | 5.5 | 2900 | 53 | 17-32 | 50GW20-40-7.5 | 50 | 20 | 40 | 7.5 | 2900 | 55 | 20-40 | 65GW25-15-2.2 | 65 | 25 | 15 | 2.2 | 2840 | 52 | 6-15 | 65GW37-13-3 | 65 | 37 | 13 | 3 | 2880 | 55 | 6-13 | 65GW25-30-4 | 65 | 25 | 30 | 4 | 2890 | 58 | 15-30 | 65GW30-40-7.5 | 65 | 30 | 40 | 7.5 | 2900 | 56 | 20-40 | 65GW35-50-11 | 65 | 35 | 50 | 11 | 2930 | 60 | 35-50 | 65GW35-60-15 | 65 | 35 | 60 | 15 | 2930 | 63 | 40-60 | 80GW40-7-2.2 | 80 | 40 | 7 | 2.2 | 1420 | 52 | 3-7 | 80GW43-13-3 | 80 | 43 | 13 | 3 | 2880 | 50 | 5-13 | 80GW40-15-4 | 80 | 40 | 15 | 4 | 2890 | 57 | 6-15 | 80GW65-25-7.5 | 80 | 65 | 25 | 7.5 | 2900 | 56 | 12-25 | 100GW80-10-4 | 100 | 80 | 10 | 4 | 1440 | 62 | 4-10 | 100GW110-10-5.5 | 100 | 110 | 10 | 5.5 | 1440 | 66 | 5-10 | 100GW100-15-7.5 | 100 | 100 | 15 | 7.5 | 1440 | 67 | 8-15 | 100GW85-20-7.5 | 100 | 85 | 20 | 7.5 | 1440 | 68 | 10-20 | 100GW100-25-11 | 100 | 100 | 25 | 11 | 1460 | 65 | 10-25 | 100GW100-30-15 | 100 | 100 | 30 | 15 | 1460 | 66 | 12-30 | 100GW100-35-18.5 | 100 | 100 | 35 | 18.5 | 1470 | 65 | 15-35 | 125GW130-15-11 | 125 | 130 | 15 | 11 | 1460 | 62 | 7-15 | 125GW130-20-15 | 125 | 130 | 20 | 15 | 1460 | 63 | 10-20 | 150GW145-9-7.5 | 150 | 145 | 9 | 7.5 | 1440 | 63 | 4-9 | 150GW180-15-15 | 150 | 180 | 15 | 15 | 1460 | 65 | 5-15 | 150GW180-20-18.5 | 150 | 180 | 20 | 18.5 | 1470 | 75 | 8-20 | 150GW180-25-22 | 150 | 180 | 25 | 22 | 1470 | 76 | 12-25 | 150GW130-30-22 | 150 | 130 | 30 | 22 | 1470 | 75 | 15-30 | 150GW180-30-30 | 150 | 180 | 30 | 30 | 1470 | 73 | 15-30 | 150GW200-30-37 | 150 | 200 | 30 | 37 | 1480 | 70 | 13-30 | 200GW300-7-11 | 200 | 300 | 7 | 11 | 970 | 73 | 3-7 | 200GW250-11-15 | 200 | 250 | 11 | 15 | 970 | 74 | 4-11 | 200GW400-10-22 | 200 | 400 | 10 | 22 | 1470 | 76 | 5-10 | 200GW400-13-30 | 200 | 400 | 13 | 30 | 1470 | 73 | 6-13 | 200GW250-15-18.5 | 200 | 250 | 15 | 18.5 | 1470 | 72 | 7-15 | 200GW300-15-22 | 200 | 300 | 15 | 22 | 1470 | 73 | 8-15 | 200GW250-22-30 | 200 | 250 | 22 | 30 | 1470 | 71 | 12-22 | 200GW350-25-37 | 200 | 350 | 25 | 37 | 1980 | 75 | 10-25 | 200GW400-30-45 | 200 | 400 | 30 | 45 | 1480 | 70 | 13-30 | 250GW600-9-30 | 250 | 600 | 9 | 30 | 980 | 74 | 3-9 | 250GW600-12-37 | 250 | 600 | 12 | 37 | 1480 | 78 | 5-12 | 250GW600-15-45 | 250 | 600 | 15 | 45 | 1480 | 75 | 6-15 | 250GW600-20-55 | 250 | 600 | 20 | 55 | 1480 | 73 | 8-20 | 250GW600-25-75 | 250 | 600 | 25 | 75 | 1480 | 73 | 12-25 | 250GW800-12-45 | 250 | 800 | 12 | 45 | 980 | 76 | 5-12 | 300GW500-15-45 | 300 | 500 | 15 | 45 | 980 | 70 | 7-15 | 300GW800-15-55 | 300 | 800 | 15 | 55 | 980 | 73 | 8-15 | 300GW600-20-55 | 300 | 600 | 20 | 55 | 980 | 75 | 10-20 | 300GW800-20-75 | 300 | 800 | 20 | 75 | 980 | 78 | 12-20 | 300GW950-20-90 | 300 | 950 | 20 | 90 | 980 | 80 | 11-20 | 300GW1000-25-110 | 300 | 1000 | 25 | 110 | 980 | 82 | 12-25 | 350GW1100-10-55 | 350 | 1100 | 10 | 55 | 980 | 84.5 | 4-10 | 350GW1500-15-90 | 350 | 1500 | 15 | 90 | 980 | 82.5 | 6-15 | 350GW1200-18-90 | 350 | 1200 | 18 | 90 | 980 | 83.1 | 8-18 | 350GW1100-28-132 | 350 | 1100 | 28 | 132 | 740 | 83.2 | 15-28 | 350GW1000-36-160 | 350 | 1000 | 36 | 160 | 740 | 78.5 | 20-36 | 400GW1500-10-75 | 400 | 1500 | 10 | 75 | 980 | 82.1 | 3-10 | 400GW2000-15-132 | 400 | 2000 | 15 | 132 | 740 | 85.5 | 6-15 | 400GW1700-22-160 | 400 | 1700 | 22 | 160 | 740 | 82.1 | 10-22 | 400GW1500-26-160 | 400 | 1500 | 26 | 160 | 740 | 83.5 | 12-26 | 400GW1700-30-200 | 400 | 1700 | 30 | 200 | 740 | 83.5 | 15-30 | 400GW1800-32-250 | 400 | 1800 | 32 | 250 | 740 | 82.1 | 17-32 |
|
